This remote control has a superheterodyne receiver for greater sensitivity and better rejection of interference and noises.
It has 3 modes of operation:
ON-OFF: With the first push of the control button the R/C becomes ON while the second press OFF.
Push ON: R/C becomes ON as long as we have the button on the controller pressed.
TOGGLE: With the first button the R/C becomes ON while with the second OFF.
This way you can always know when the R/C is ON or OFF.
The selection is made from 1 jumper inside the receiver.
It can store up to 20 controls with a different code, so it can also store your old controls.
Its very easy to program.
Very small receiver dimensions.

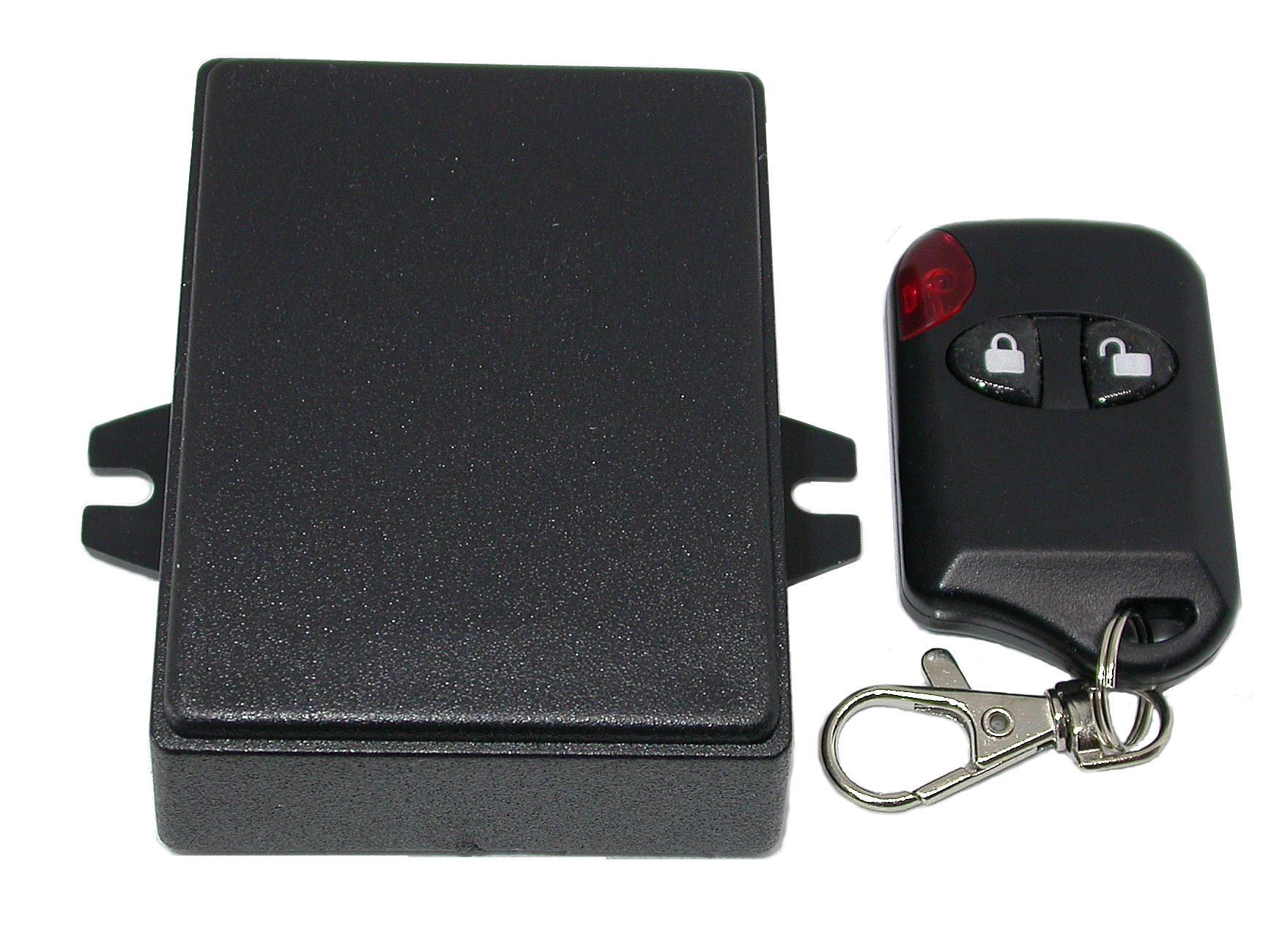

1 CHANNEL REMOTE CONTROL TEL915N5
Supply Voltage: 12-24 VDC.
Power Supply: 10mA./30mA ON Relay.
Sensitivity: -106 dbm.
Relay contact: 5A - 10A
Security codes: 2,000,000
Receiver Dimensions: 6.7 X 4.8 X 2.5 cm.
